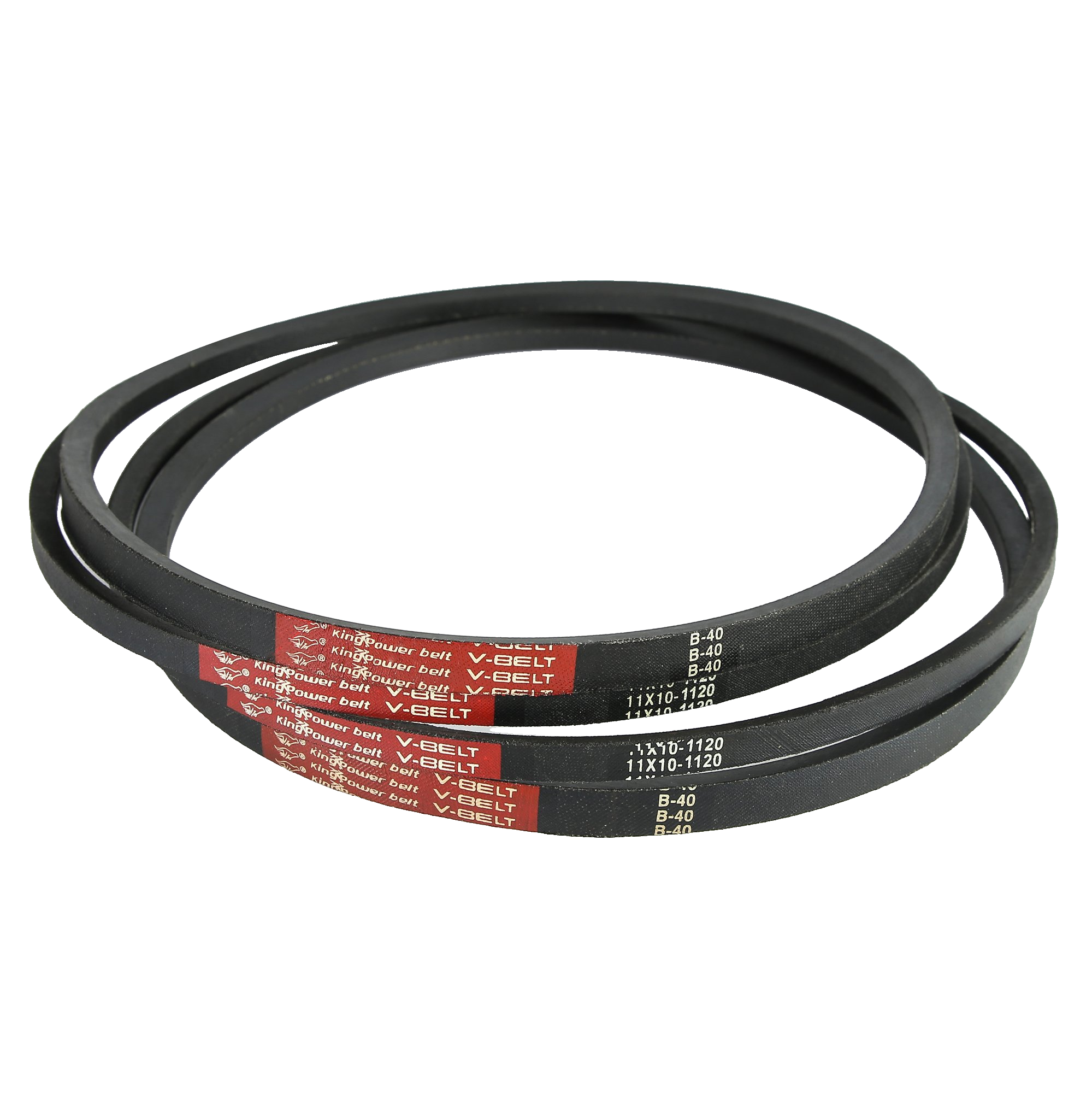

  • v-belt-b40

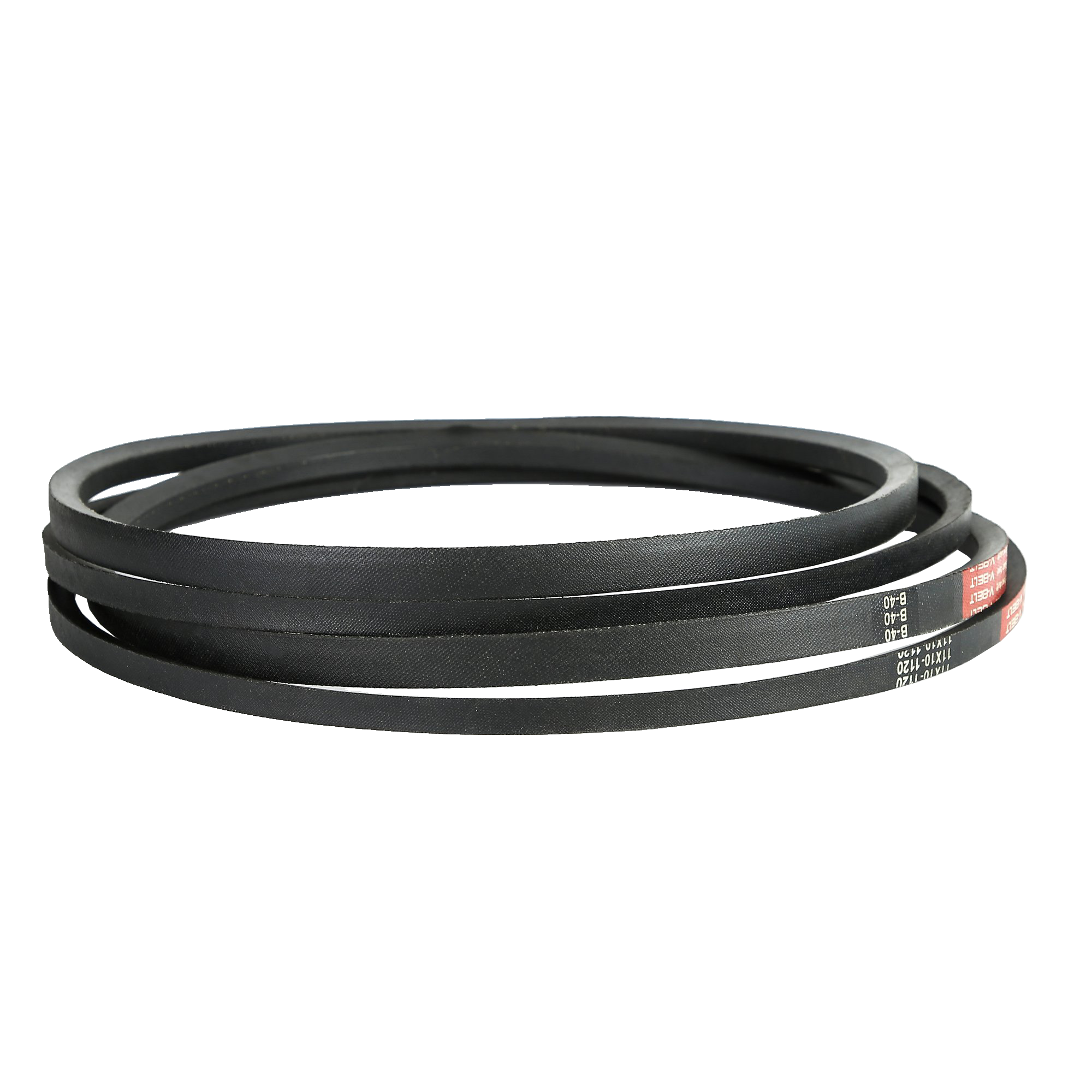

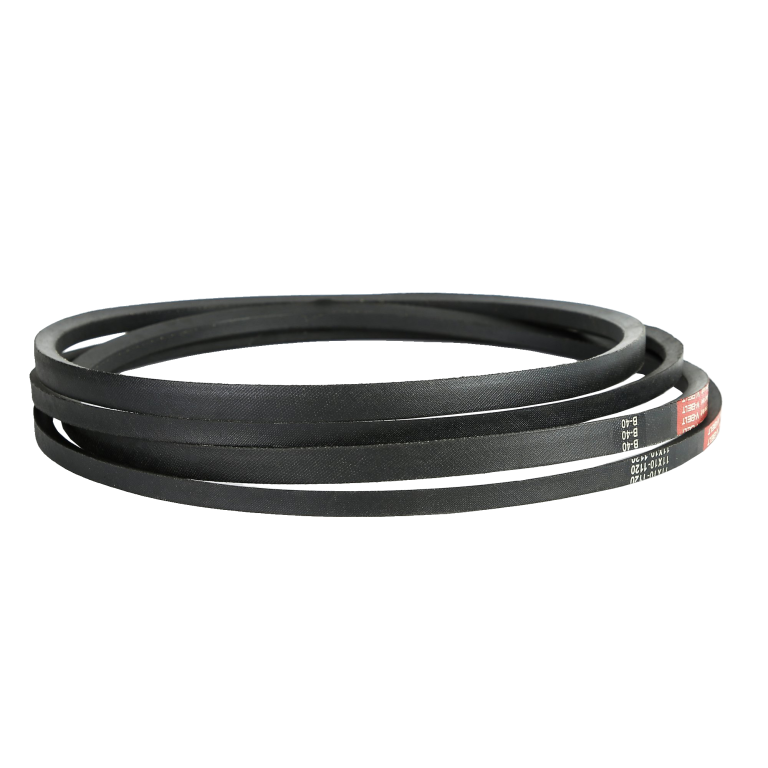

  • v-belt-b-section

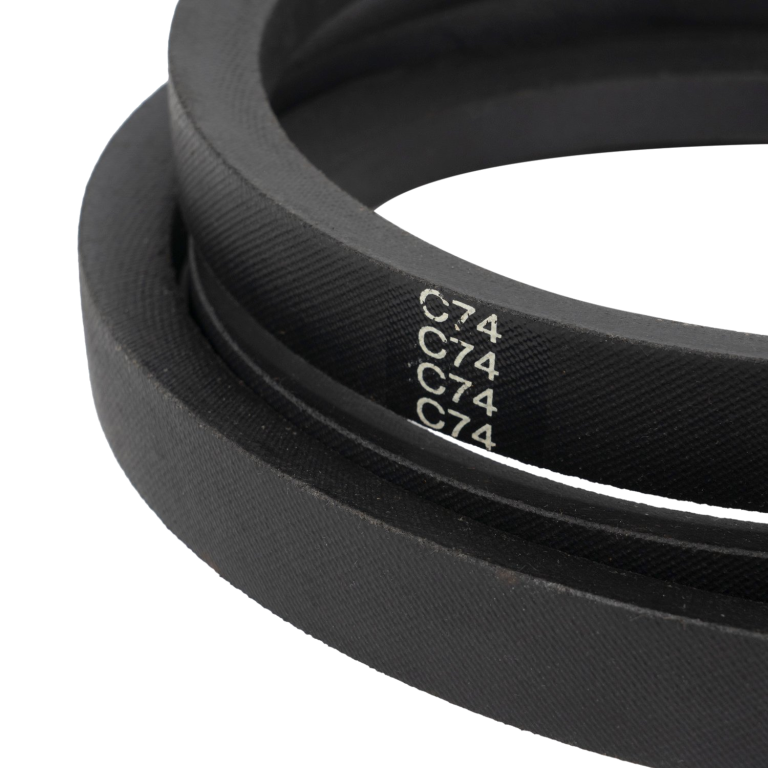

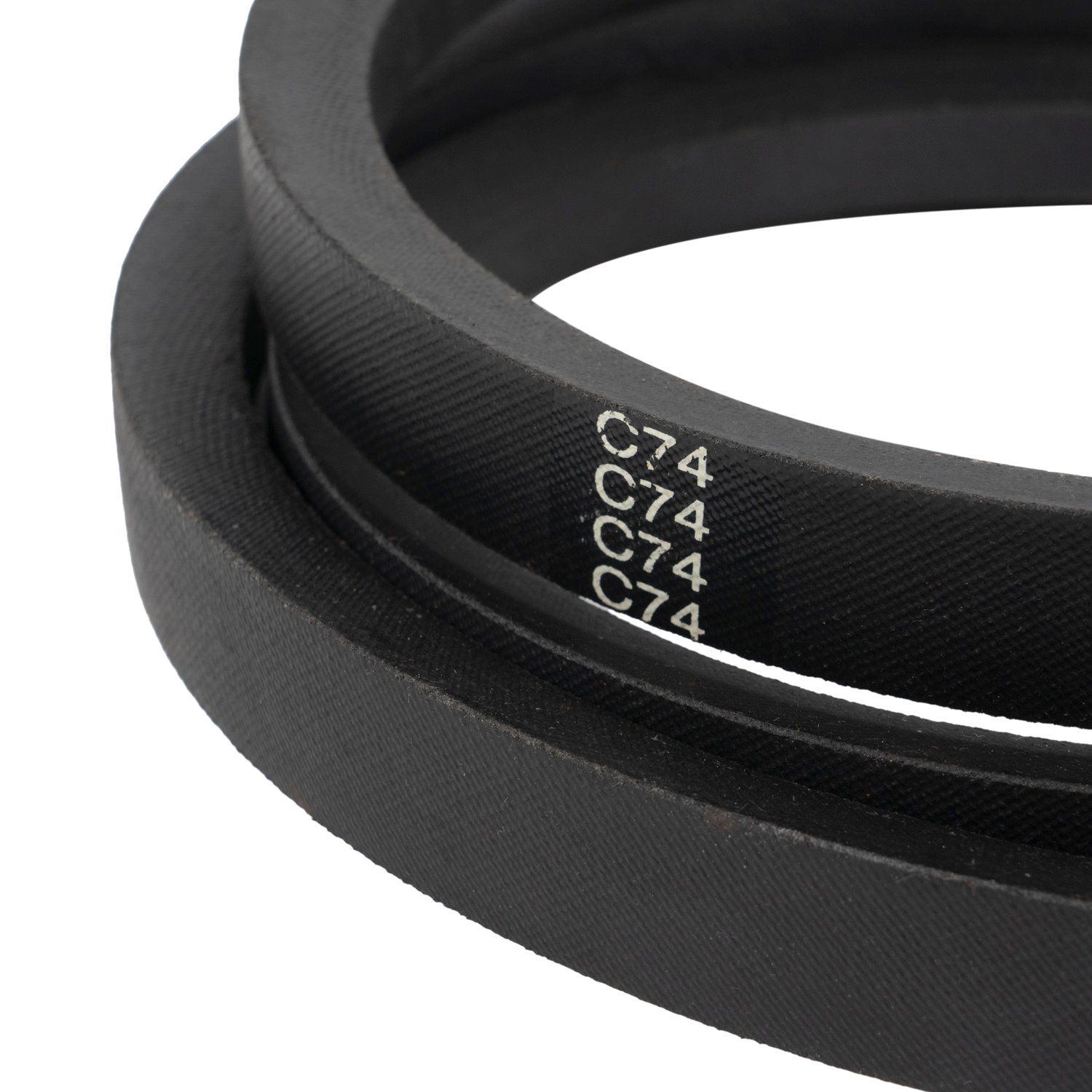

  • v-belt-c74
V-Belts

Classical Wrapped V-Belt

Premium wrapped classic V-belts are available in models A, B, C, SPA, SPB, and SPC. They utilize heat- and oil-resistant NR/CR rubber compounds and polyester tension ropes to achieve stable length and reliable power transmission.
  • Sections
    A · B · C · D · E / SPZ–SPC
  • MATERIA
    NR/CR /EPDM
  • LENGTH RANGE
    20" – 600" / Custom
  • OEM / ODM
    Custom Size & Logo Accepted
Get A Quote
Chat on WhatsApp
Download Datasheet (PDF)
SIZE TOP WIDTH
(mm)		 HEIGHT
(mm)		 ANGLE CAPACITY BY KINGPOWER
(INCH)		 CAPACITY BY KINGPOWER
(MM)
Z (X) 10 6 40° 20-100 500-2500
A (X) 13 8 40° 20-200 500-5000
B (X) 17 11 40° 25-420 600-12000
C (X) 22 14 40° 35-420 800-12000
D 32 19 40° 40-420 1000-12000
37 (9N) 9.5 8 40° 25-150 600-4000
5V (15N) 16 13.5 40° 30-200 750-5000
8V (25N) 25 23 40° 30-400 750-12000
SPZ 9.7 8 40° 20-150 500-4000
SPA 12.7 10 40° 30-200 750-5000
SPB 16.3 13 40° 30-400 750-12000
SPC 22 18 40° 30-400 750-12000

  • Heat & Oil Resistant

    CR / NR / EPDM compounds engineered for reliable performance in hot, oily engine compartments.

  • High Strength Cord

    Polyester / Aramid / Fiberglass tensile cords provide low stretch and stable power transmission.

  • Wear-Resistant Cover

    Fabric-reinforced cover resists abrasion and ensures consistent friction on pulleys.

Typical Applications

Our V-belts deliver dependable friction-drive power transmission across a wide range of industries. From HVAC and agriculture to pumps, fans, compressors, and generators, they offer smooth operation, shock absorption, and cost-effective maintenance.

  • HVAC & Air Conditioning Compressor

    V-belts reliably transmit power to HVAC compressor and fan systems, offering smooth operation, low vibration, and easy maintenance for commercial and residential climate control

  • Water Pumps

    From agricultural irrigation to municipal pumping stations, V-belts connect motors to water pumps with high grip and shock absorption, even under wet conditions.

  • Agricultural Machinery

    Widely used on tractors, harvesters, and irrigation equipment, V-belts handle dusty environments and variable loads while keeping replacement simple and cost-effective.

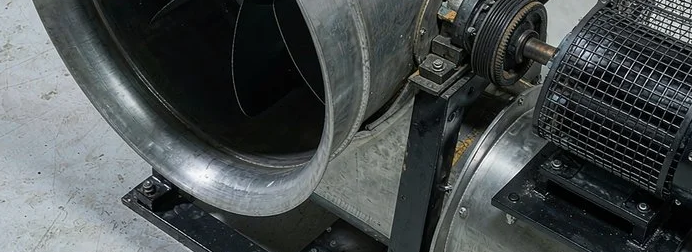

  • Industrial Fans & Blowers

    V-belt drives allow flexible pulley ratios for industrial ventilation fans and blowers, ensuring efficient airflow and reliable performance in factories and mines.

Frequently Asked Questions

Everything you need to know about our V-belts, timing belts, ribbed belts, and wrapped belts. Can't find the answer you're looking for? Reach out to our team for a quick quote.

Get A Quote

What is the minimum order quantity (MOQ)?

Our standard MOQ is 50 pieces per size/specification for standard belts. For customized orders with private branding or special packaging, MOQ starts at 1,00 pieces. We also support trial orders for new customers to verify quality.

How do I choose the right belt type and size?

Share your application (engine, compressor, conveyor, etc.), pulley diameter, speed, and load requirements. Our engineers will recommend suitable V-belts, timing belts, ribbed belts, or wrapped belts accordingly, and provide cross-reference support for OEM part numbers.

Which quality standards do your belts meet?

Our belts are manufactured under ISO 9001 quality management and meet international standards such as RMA/MPTA, DIN 7753, and ISO 1813. Material options include chloroprene rubber (CR) and hydrogenated nitrile rubber (HNBR) for high-temperature applications.

How long does sampling and mass production take?

Standard samples are ready within 5-7 working days; custom samples take 7-12 days. Mass production lead time is typically 15-25 working days depending on order quantity and specifications.

What is your warranty and after-sales policy?

We provide a 12-month warranty against manufacturing defects. If any quality issue occurs under normal use, we offer free replacement or refund after verification. Technical support is available throughout the product life cycle.
